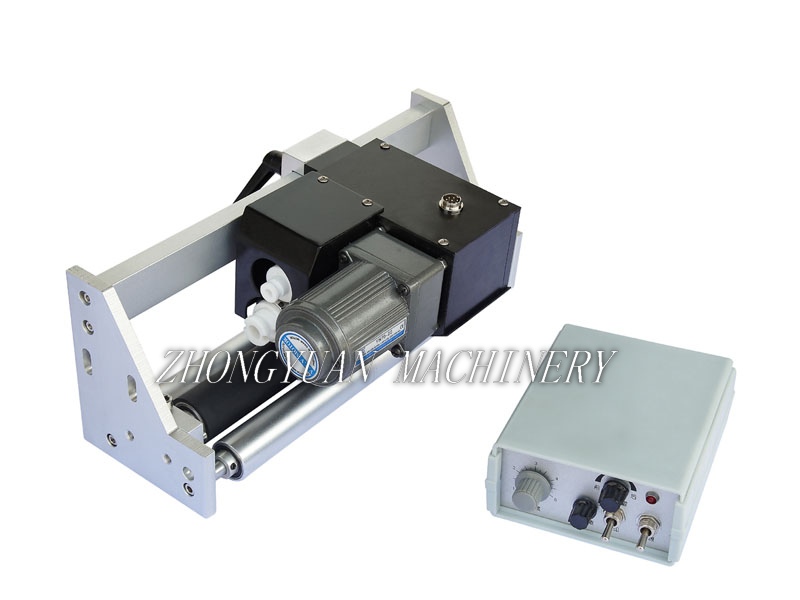

- MY-812 Series Lock-and-follow Dry-ink Coding Machine
- 【Brief】：
1) The machine can be used to math with vertical and horizontal automatic packaging machine, and print the label of the product.
2) It can print by solid-ink roller; the character is clear, instant printing and instant dry, with strong adhesion.
3) It can list 10 characters one line, at most 11lines.MY-821A with motor driving.
4) The print location of photo-electricity tracing can be adjustable, with accuracy.
- 【Series】：Date coder and inkjet printer
- Description
-
Product Feature
1) The machine can be used to math with vertical and horizontal automatic packaging machine, and print the label of the product.
2) It can print by solid-ink roller; the character is clear, instant printing and instant dry, with strong adhesion.
3) It can list 10 characters one line, at most 11lines.MY-821A with motor driving.
4) The print location of photo-electricity tracing can be adjustable, with accuracy.
Technical Specification
Model
MY-812G
MY-812A
Voltage (V/HZ)
AC 220V/50HZ, 110V/60HZ
Power (W)
130
150
Max. Printing Speed(pcs/min)
300
Max. Printing Line
T type (10.5PT); 11Lines (Max.10 Characters/line)
R type (10.5PT); 8 Lines (Max 8pcs/line)
Size of Character(Height)(mm)
2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT)
Size of Solid-ink Roller(mm)
ф35×32
Max. Horizontal Adjustable Size for Printer
150 (Confirm When Ordering)
Weight for Printer (kg)
10
Max. Film Width (mm)
400 500 600
