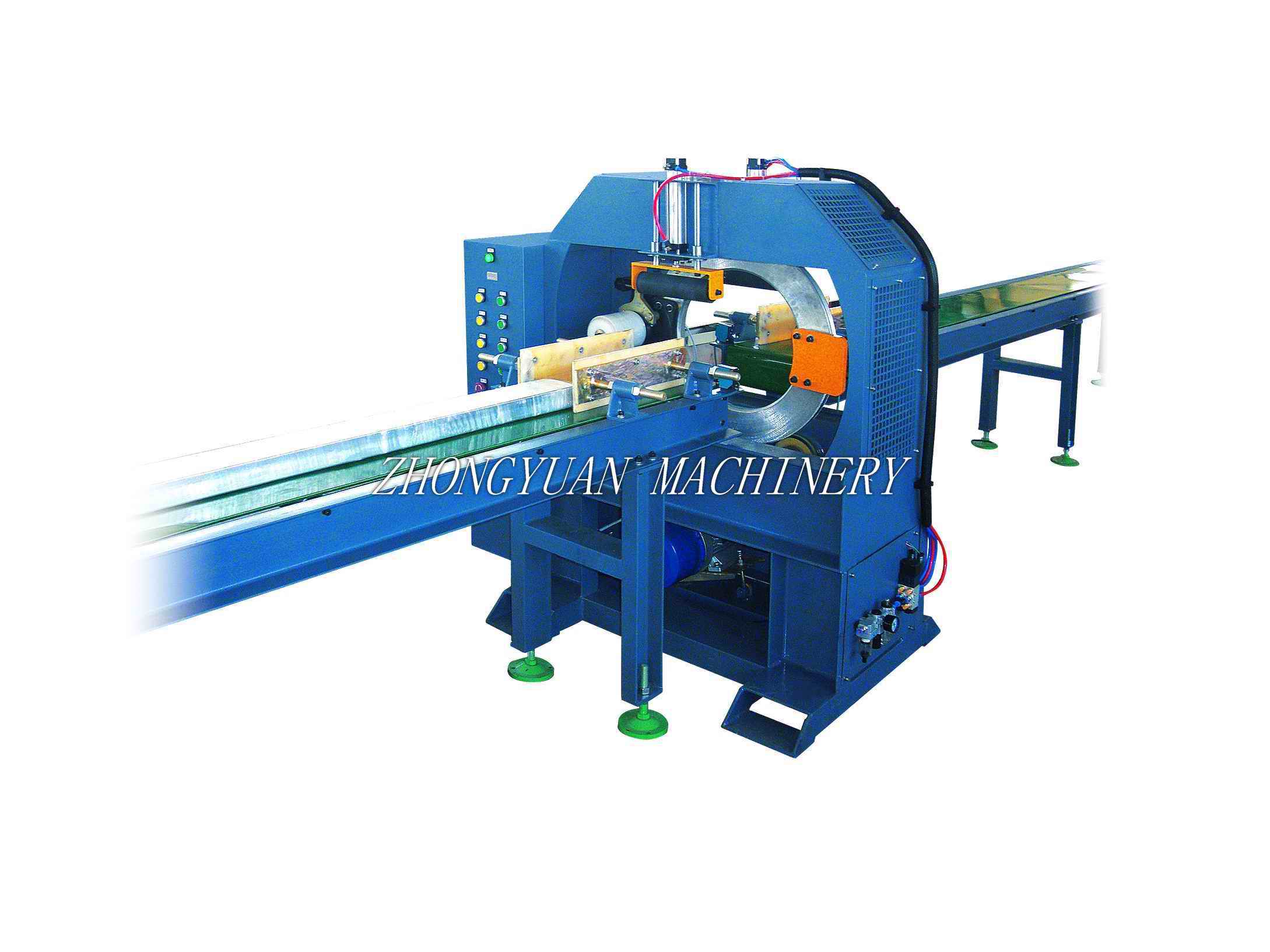

- T400CS Horizontal wrap machine
- 【Brief】：
T400CS Horizontal wrapper is an ideal solution for wrapping stretch film on the length product similar Aluminum shape, timber, textiles etc. Stretch film wrapping provide a perfect tightness, protect the product from damage during transportation.
- 【Series】：Pallet Stretch Wrapping Machines
- Description
-
Products Feature:
T400CS Horizontal wrapper is an ideal solution for wrapping stretch film on the length product similar Aluminum shape, timber, textiles etc. Stretch film wrapping provide a perfect tightness, protect the product from damage during transportation.
Technical Specification
Model
T400CS
Inner diameter
Φ400mm
Wrap speed
80rpm
Wrap size(W×H×L)
250 × 250 × ≥600mm
Transport speed
8-15 m/min
Dimension and material of packing
Material
LLDPE stretch film、VCI Anti-rust Film、woven belt、Plastic film etc.
Bore
Φ38、Φ50、Φ75mm
External diameter
Φ200mm
Breadth
150mm
Power
0.75Kw
Pneumatic system
0.4-0.8Mpa，800ml/min
Conveyor （Optional）
Roller conveyors、Rubber belt conveyors、Chain conveyors、Chain-plate conveyors etc.
