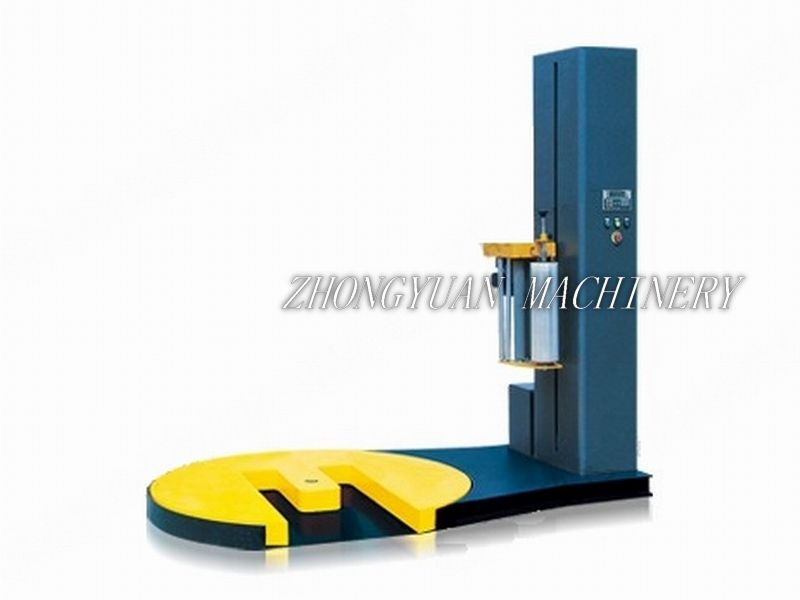

- T1650FM Automatic Pre-stretch Pallet Wrapping Machine (open turntable)
- 【Brief】：

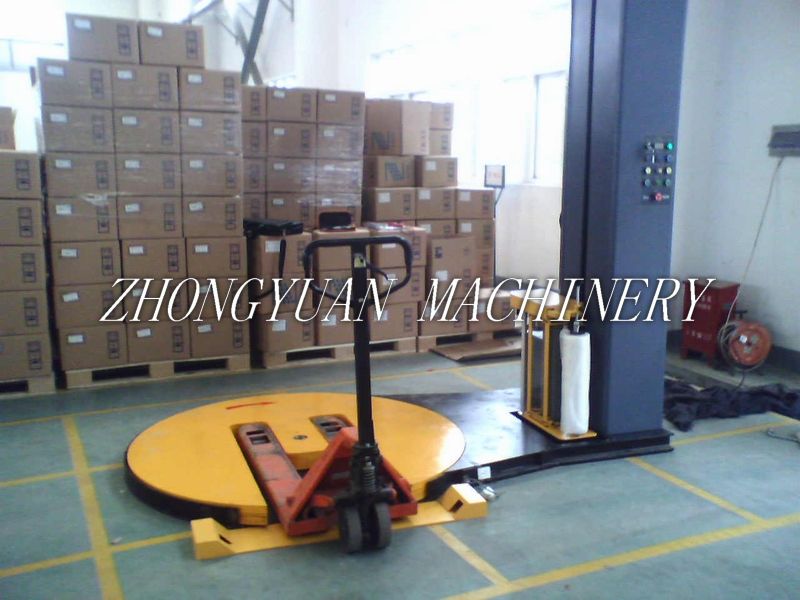

T1650FM Automatic Pre-stretch Pallet Wrapping Machine with an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency. Top plate is optional and specially designed for holding an unstable product.
- 【Series】：Pallet Stretch Wrapping Machines
- Description
-
Product Feature:
T1650FM Automatic Pre-stretch Pallet Wrapping Machine with an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency. Top plate is optional and specially designed for holding an unstable product.
Technical Specification
Model
T1650FM
Wrap size（L×W)
(500-1200）mm×(500-1200)mm
Wrap height(max)
L type：1800mm H type：2400mm Y type：2800mm
Wrap efficiency
20-40 Pallets/Hour
Turntable speed
0-12rpm Adjustable turntable speed
Turntable diameter
1650mm
Turntable height
98mm
Turntable weight capacity(max)
2000kg
Film carriage
Pre-Stretch film carriage，stretch up to 250％ and adjustable speed
Lift system
Double chain structure，lift speed adjustable
Control system
PLC control，wrap layers adjustable，Turntable automatic reset，photo-eyes auto-height sensing
Open turntable size
Custom made
Total weight(max)
700kg
Machine size
2745mm×1650mm×(2270-2870)mm
Power/voltage
Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V
Top plate(optional)
Motor-driven
